PIR Detector

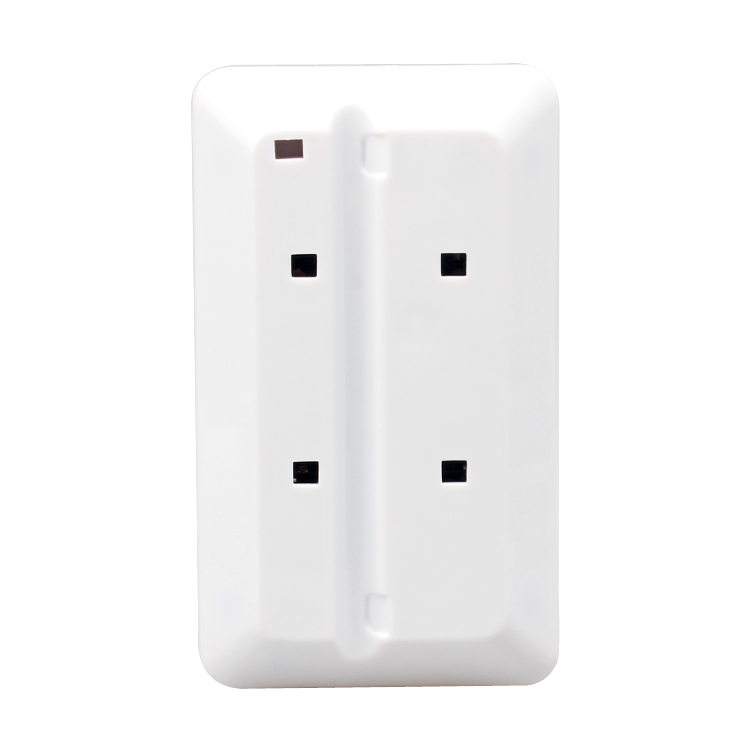

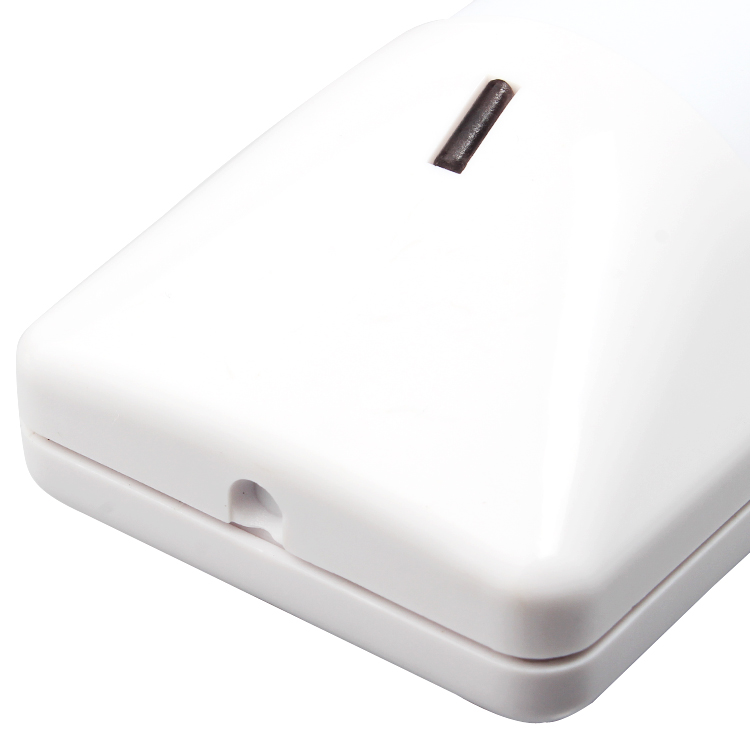

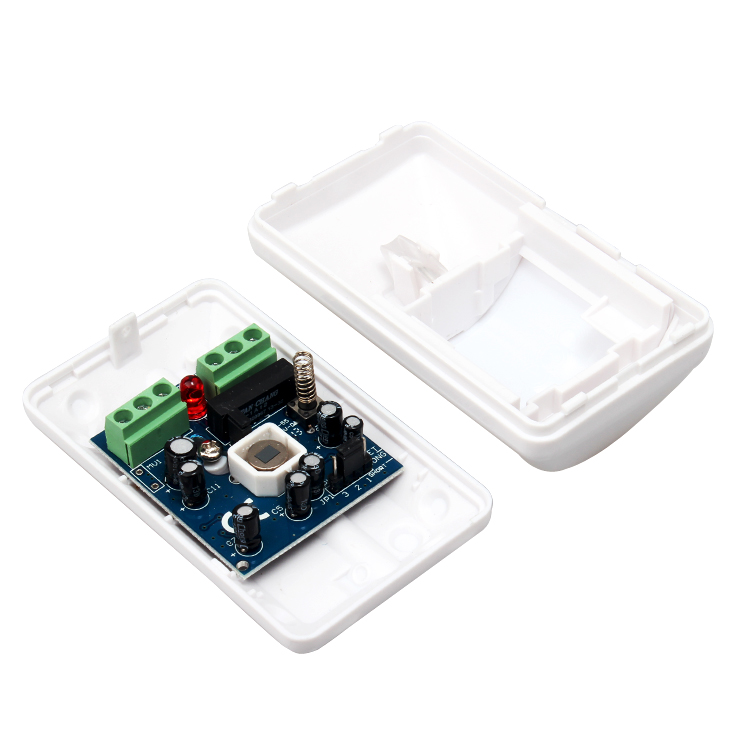

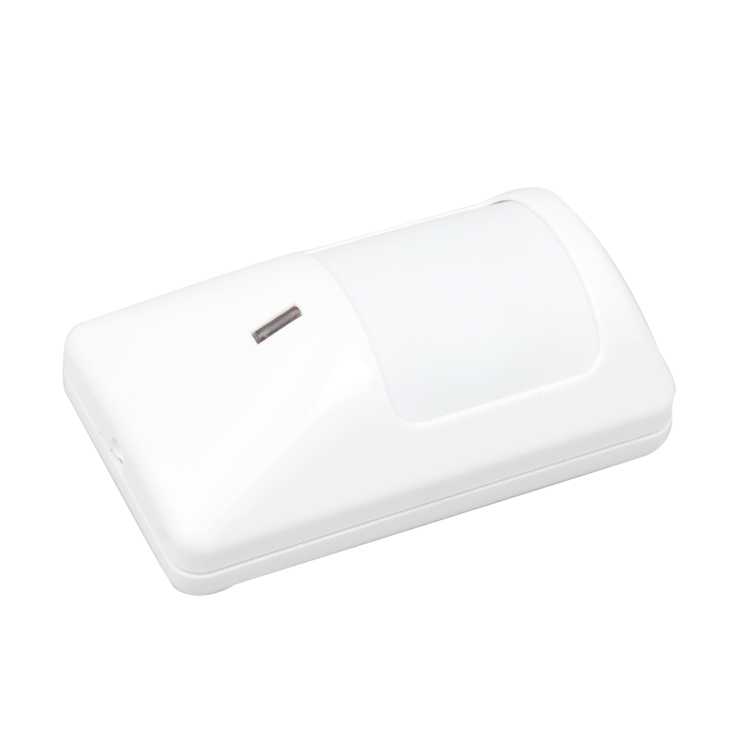

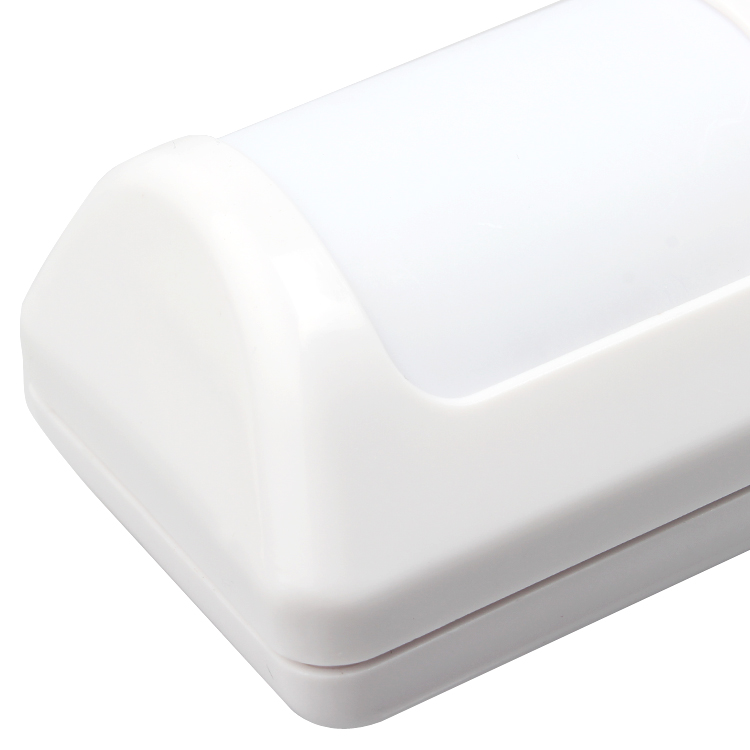

PIR Motion Sensor SE-520MS
- 1. SE-520MS
- 2. SMT adopted, anti-RFI & anti-EMI,pulse count optional
- 3. Low-consumption design, which can makes it work for long time.
- 4. resist the white light and make no false alarm
Specification:
operating voltage: DC 9-16V
consumption current: less than 18mA(DC12V)
operating temp.: -10 to +50 degrees
installation mode: wall or corner mounted
installation height: about 2.2m
detecting distance: 12m
detecting angle: 110 degrees
alarm output: N.O./ N.C. relay optional
anti-dismantle switch: N.C.
dimension: 89*52.5*38.5mm
Features:
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
