PIR Detector

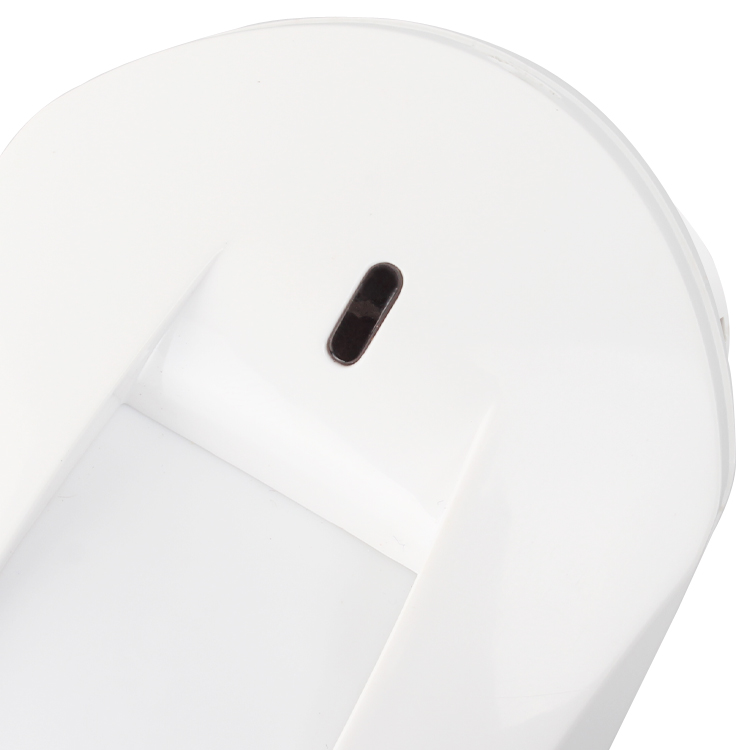

Curtain PIR Detector SE-519MS
- 1. SE-519MS
- 2. SMT adopted, anti-RFI & anti-EMI,pulse count optional
- 3. Low-consumption design, which can makes it work for long time.
- 4. resist the white light and make no false alarm
Specification:
Operating voltage: DC9-24V
Consumption current: ≤18mA(DC12V)
Operating temp.: -10ºC~+50ºC
Installation mode: wall mounted
Installation height: about 1.8m
Detecting distance: 9m
Detecting angle: 15 degrees
Alarm output: N.C
Anti-dismantle switch: N.C.
Features:
Screwing-type mounting bracket, more stable
Adjustable detecting distance
Auto temperature compensation
Low power indication
Tamper alarm function
Alarm delay optional
Anti RF(20V/m -1GHz)
Wireless signal output
Low power consumption design
SMT process, anti-RFI, anti-EMI

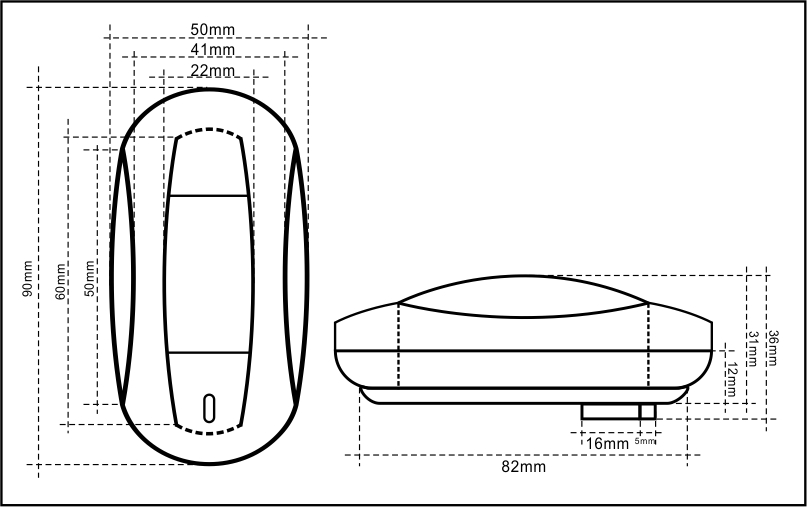

Dimensions:
